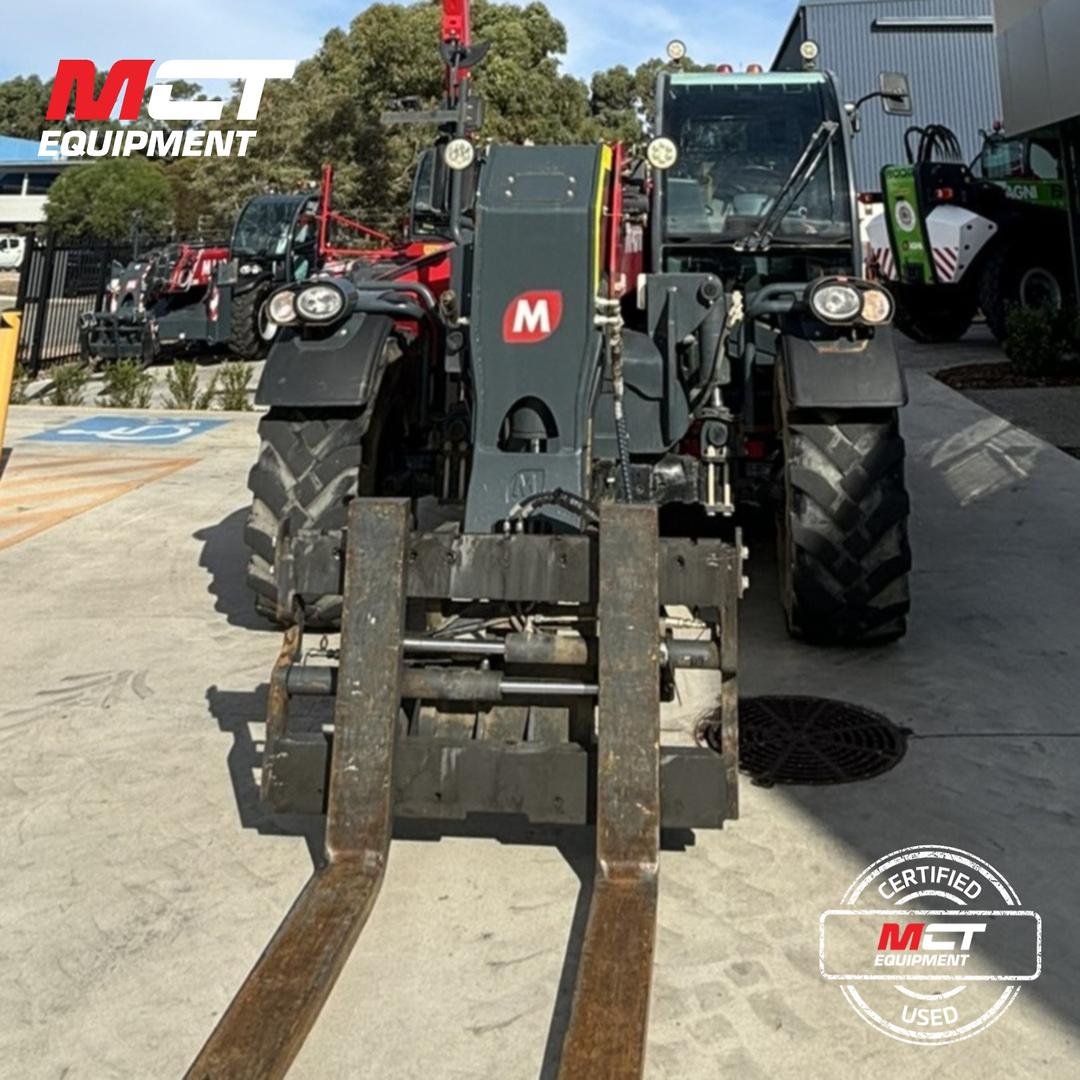

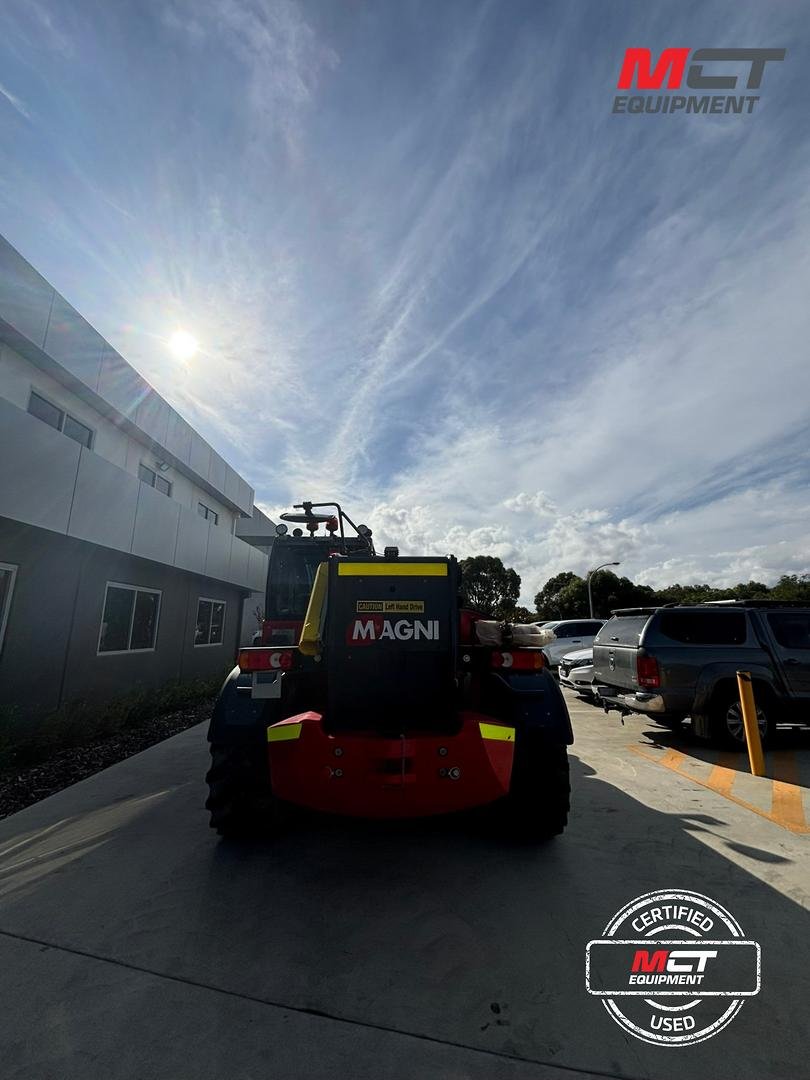

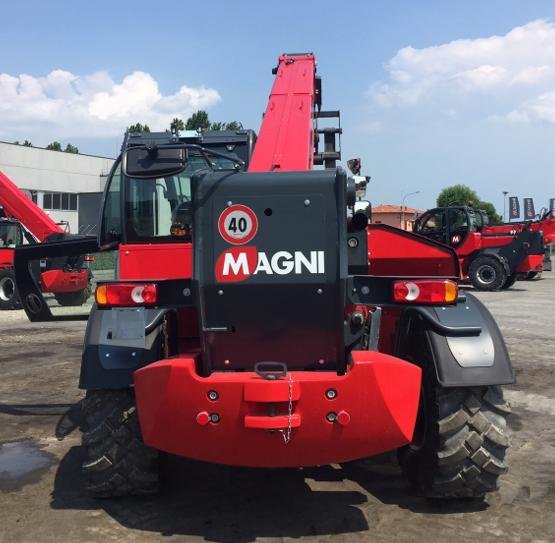

2022 Magni TH 6.10P
$0 Price On Application 3
Used
Red
#OAG-AD-20218345
0
Vehicle Comparison
2022 Magni TH 6.10P
Price on Application - Price will be disclosed to you upon contacting us.
Year
2022
Type
Used
Hours
3000
Body
Telescopic Handler
Stock #
OAG-AD-20218345
MCT Equipment
50 Jessie Lee Street, Henderson, WA 6166
Phone: (08) 6500 3460
Features
- ConditionFront: New
- ConditionRear: New

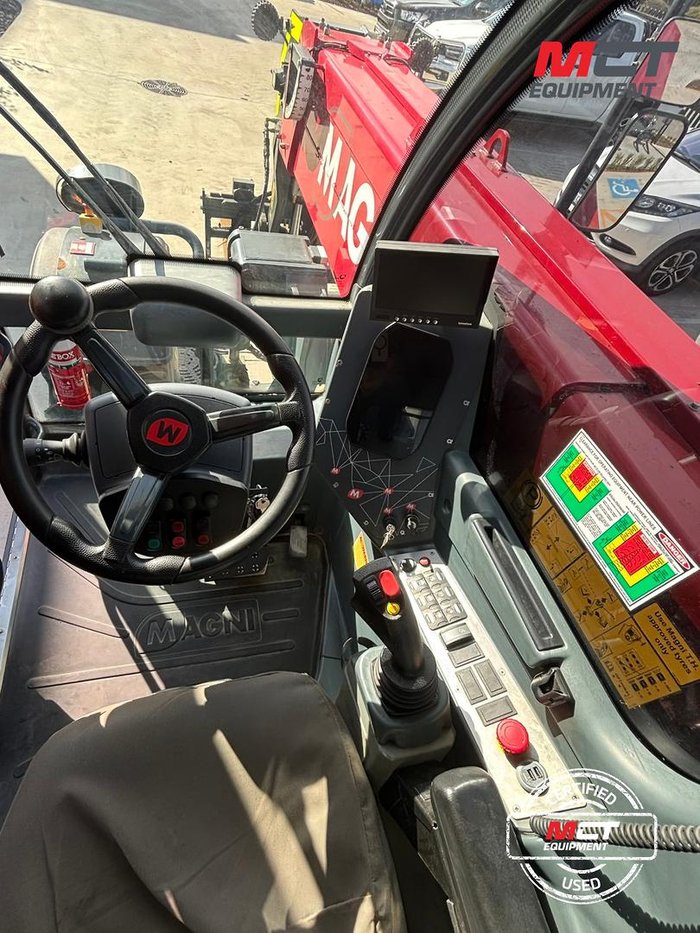

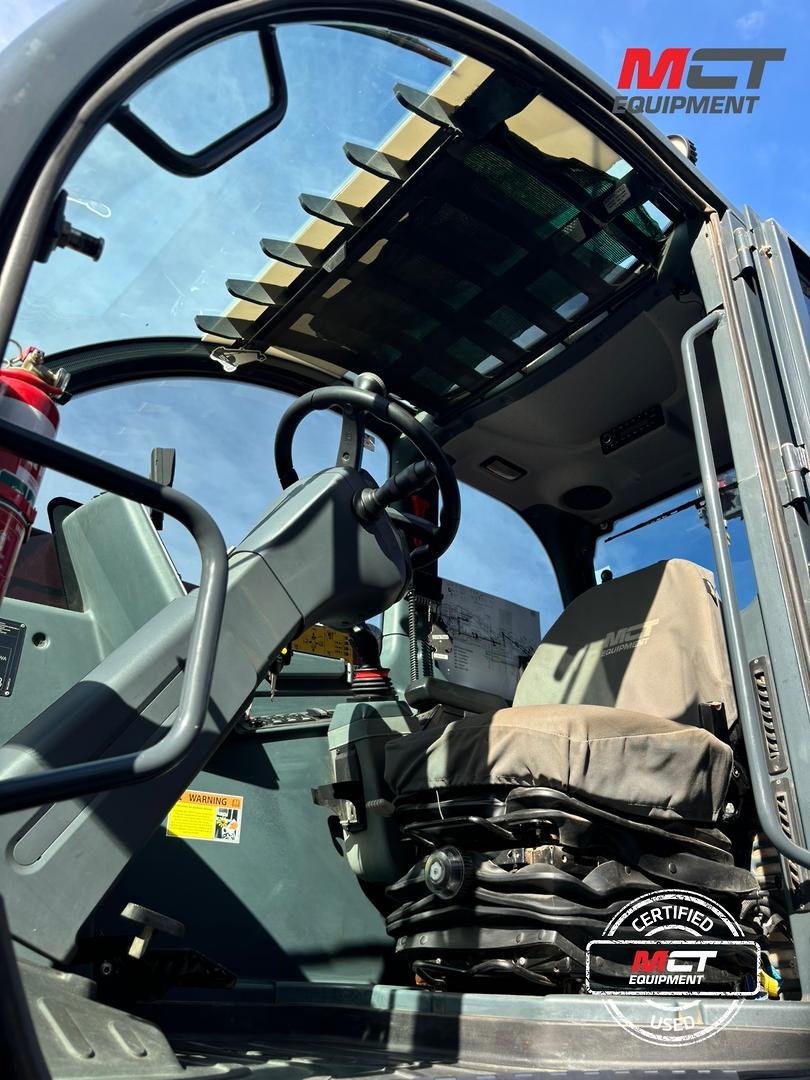

- ROPS: Enclosed Cab with ROPS
Please confirm all features with dealer.
3Price on Application - Price will be disclosed to you upon contacting us.
The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the system which allows for automatic recognition of attachments and the creation of the relative load charts.
This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
Specifications:
o Lifting capacity: 6,000 kg
o Capacity at maximum height: 5,500 kg
o Lifting height: 9.70 m

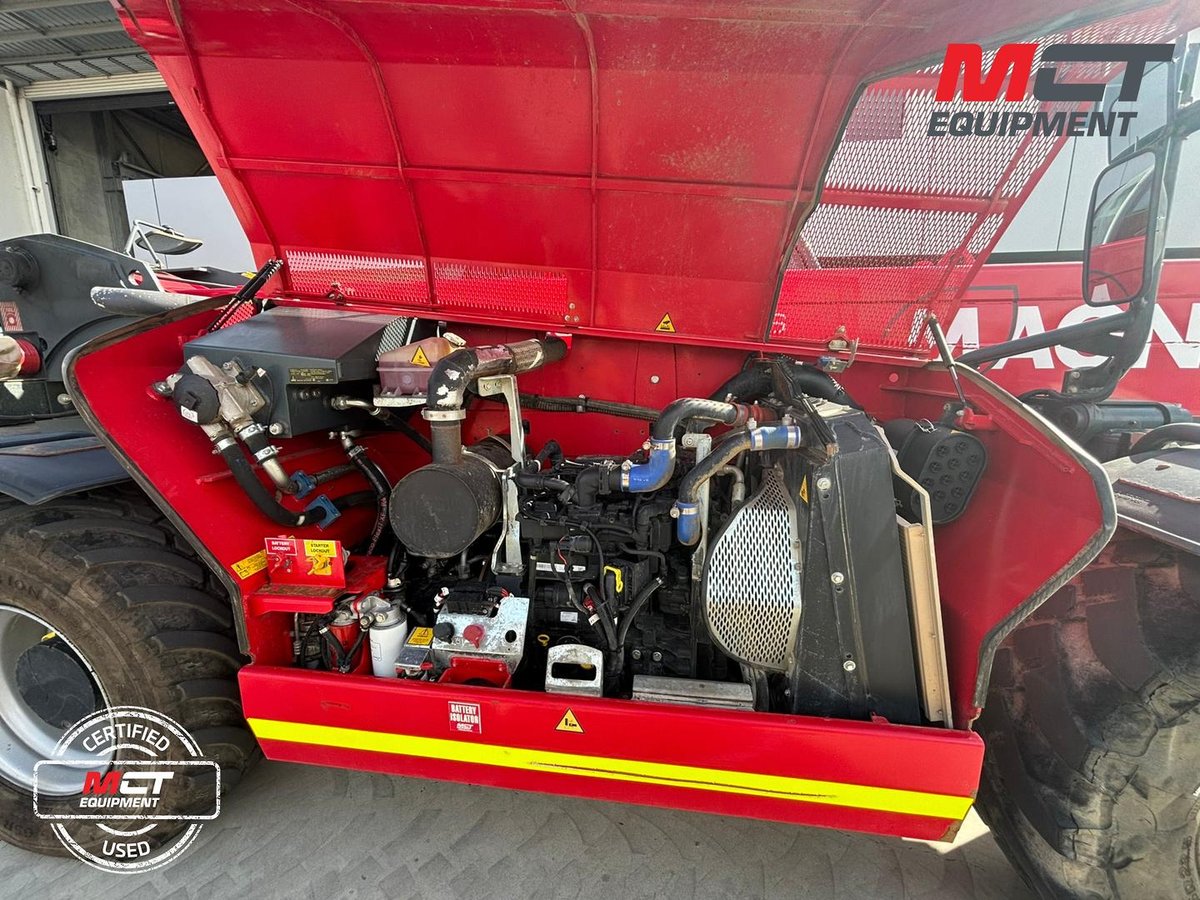

o Engine: Deutz TCD 3,6 L4 Stage V
o Rated power: 74,4 kW (101,2 hp) a 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.01 m
o Width: 2.53 m
o Ground clearance: 410 mm
o Unladen weight: 12,000 kg
o Travel speed: 35 km/h
o Climate Control Standard: Yes
o Automatic accessory recognition: Yes

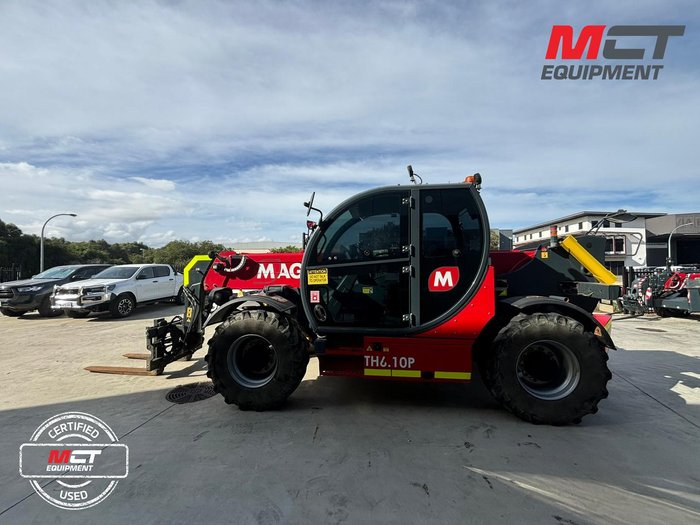

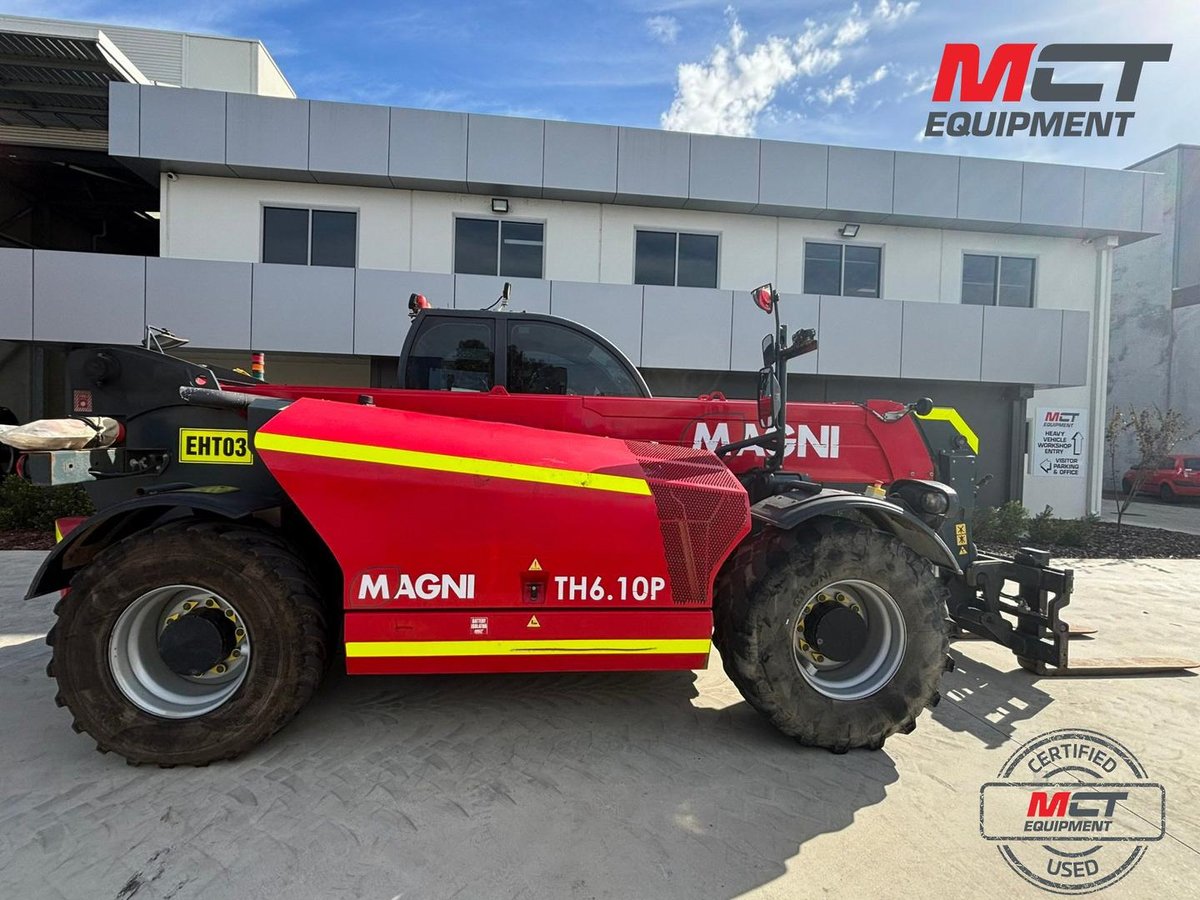

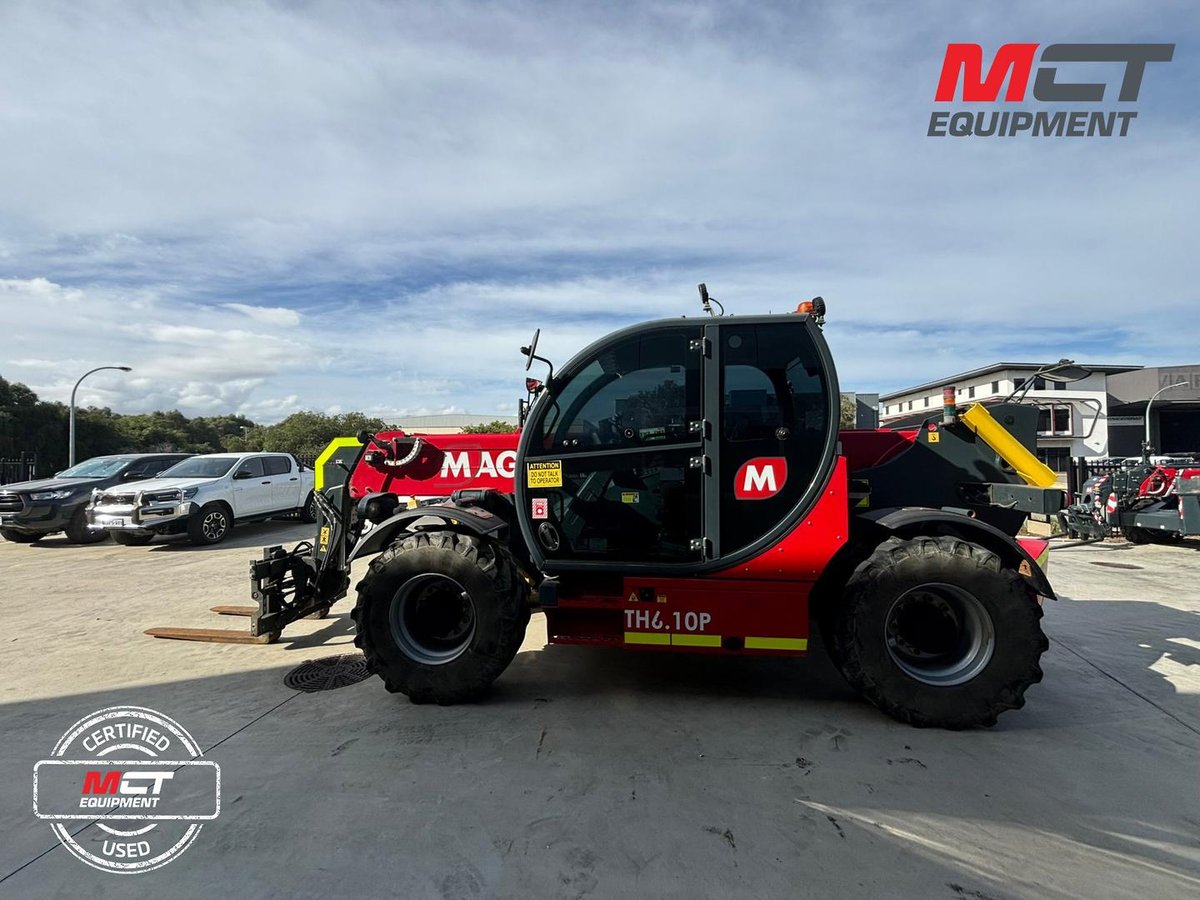

The TH 6.10P is a fixed telescopic handler / telehandler especially suitable for light industry. Powered by a Deutz 75 kW engine, it can safely reach a height of 9.70 m on rough terrain thanks to its 4-wheel drive.
The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.
This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
Specifications:
o Lifting capacity: 6,000 kg
o Capacity at maximum height: 5,500 kg
o Lifting height: 9.70 m
o Engine: Deutz TCD 3,6 L4 Stage V
o Rated power: 74,4 kW (101,2 hp) a 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.01 m
o Width: 2.53 m
o Ground clearance: 410 mm
o Unladen weight: 12,000 kg
o Travel speed: 35 km/h
o Climate Control Standard: Yes
o Automatic accessory recognition: Yes
